Introducing

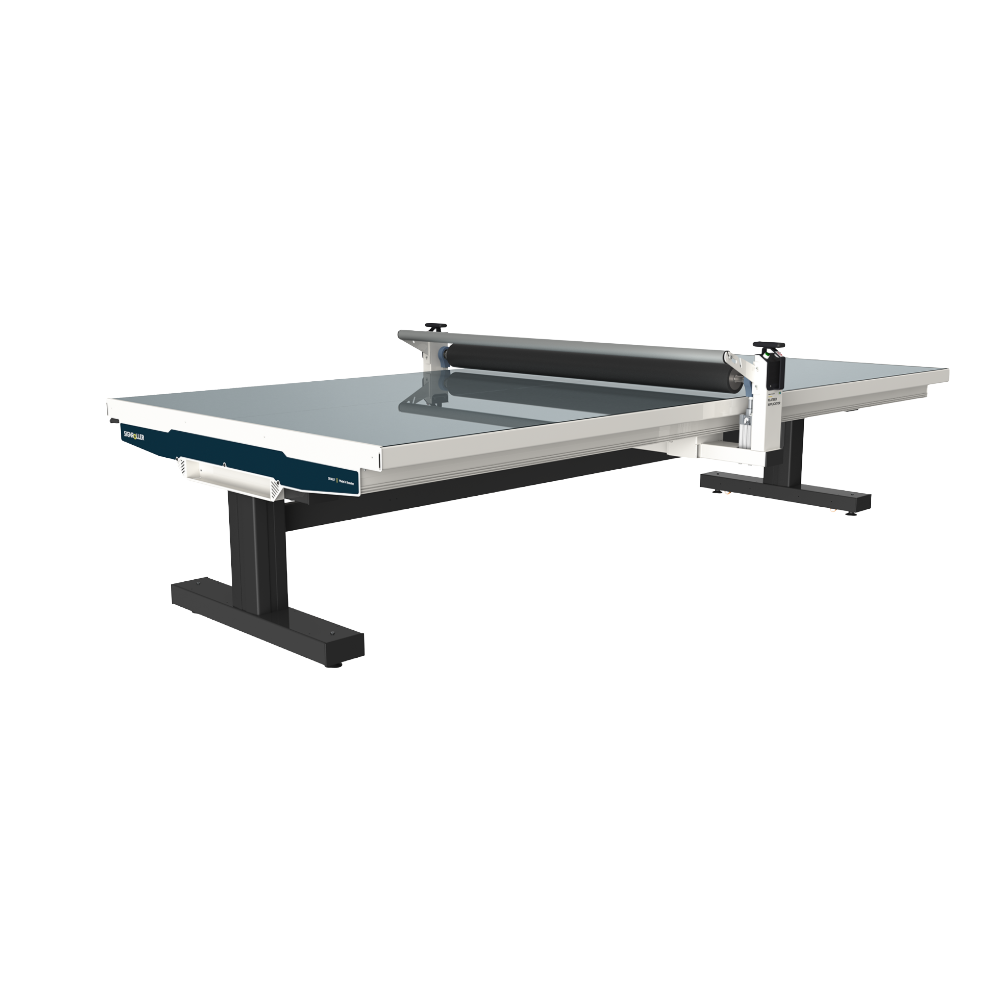

SIGNROLLER 3617
SIGNROLLER SOLVES THE DAILY CHALLENGES OF SIGN PRODUCTION
The table combines smart design with professional features that improve workflow, precision, and operator comfort in everyday sign production.
SWEDISH ENGINEERING | SIGNROLLER 3617
Flatbed Applicator Worktable for Professional Sign Production
The SIGNROLLER 3617 is a professional pneumatic flatbed applicator table and applicator worktable built to solve the daily challenges of sign production. Used as a sign lamination table and mounting table for signs, it combines a true 5 x 10 workspace, LED illuminated table top, precise roller positioning, and an electronically adjustable two-pillar design for consistent everyday performance.
WORKSPACE
True 5 x 10 with working margins
Work Height
800 to 1100 mm (2ft. 8in. – 3ft. 7in.)
Roller control
Seamless two-button roller control for up & down
No overlaying bridge
Unobstructed free access to the roller and work area
WORK WITH CONFIDENCE
Lift columns built for stability in demanding equipment deliver up to 2× stability, keeping the table rock-solid at full working height for ergonomic daily production.
HANDLE FULL 5X10 PANELS
True 5×10 workspace with extra space around the panel for easier positioning and handling.
POSITION THE ROLLER EXACTLY WHERE YOU NEED IT
Stepless roller movement with two-button control replaces fixed up/down roller positions found in one-button systems.
MOVE FREELY AROUND THE TABLE
The Signroller Two-Pillar Design creates more usable workspace around the table, making it easier to move, position materials, and work efficiently during application.
SIGNROLLER VS TYPICAL COMPETITOR
SIGNROLLER
True 5×10 workspace with extra working margin
Stepless roller movement
Two-button roller control (stepless)
Two-Pillar Design creating more workspace
Machine leveling feets and casters
TYPICAL COMPETITOR
Tight workspace with limited to no margins
Fixed up/down roller position
One-button roller control (up or down)
Multi-leg structure limiting access
Casters
BUILT FOR THE WAY REAL SIGN SHOPS WORK EVERY DAY
Signroller is designed to help you position panels easier, apply with more control, and get clean, consistent results day after day.
TYPICAL APPLICATIONS
Your Flatbed Applicator for Laminating, Mounting and more
Laminating Large Format Prints
Use the SIGNROLLER 3617 as your sign lamination table for clean large-format lamination workflow.

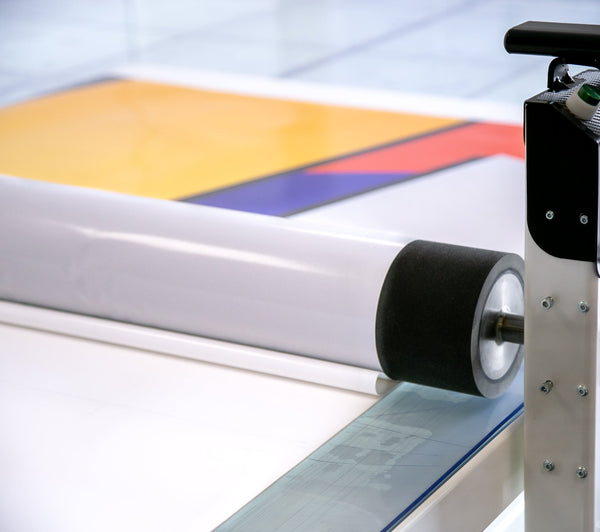

Mounting Prints on Boards
Apply printed graphics to rigid boards with controlled pressure and improved alignment.

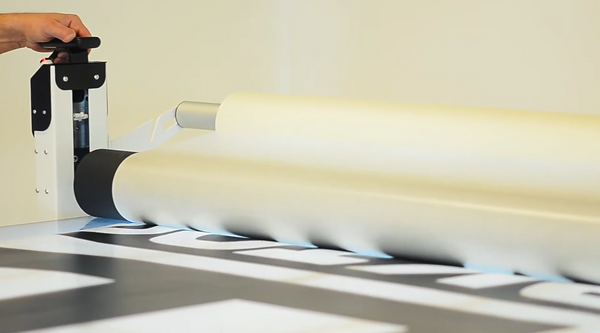

Transfer Film Application
Apply transfer film, masking, and pre-mask material with smoother handling and even pressure.

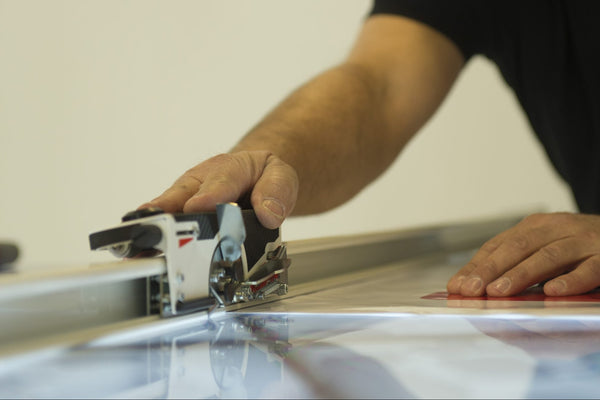

Cutting and Trimming
Use the illuminated work surface as a stable production area for trimming and inspection.
KEY FEATURES
Key Features of the SIGNROLLER 3617 Flatbed Applicator Table
True 5 x 10 Production Capacity
The SIGNROLLER Flatbed applicator table offers a full 5 x 10 working area with added margin for easier alignment and handling of full-size sign panels.
Precision Two-Button Roller Control
Two-button controls provide smooth up and down adjustment, allowing operators to fine-tune roller position and pressure in real time.
Illuminated Glass + Cutting mat Work SURFACE
Illuminated worktable (LED) for accurate alignment and clean application results with integrated worktable surface with self-healing cutting mat for prep and trimming directly on the table.
Two-Pillar Open Workspace Design
The two-pillar structure keeps the area around the table open, making it easier to position large panels and move freely during application.
Electronic Height Adjustment
Electronic height adjustment allows operators to set the table between 800 and 1100 mm (31.5 to 43.3 in) allowing comfortable, ergonomic daily production across operators.
Professional Production Build
Heavy-duty construction and precision components support demanding sign shop production environments.
| FACTS | |
|---|---|
| Part No | SR3617 |
| Description | SIGNROLLER 3617 |
| Table Length | 3640mm (11ft. 11in.) |
| Table width | 1720mm (5ft. 8in.) |
| Length of working area | 3368mm (11ft. 1in.) |
| Width of working area/roller | 1650mm (5ft. 5in.) |
| Overall width | 2080mm (6ft. 10in.) |
| Max. thickness of substrate | 0-70mm (0-2.7in.) |
| Work height | 800-1100mm (2ft. 8in. – 3ft. 7in.) |
| Work height adjustment | Electronic |
| Bed surface | Safety glass + Self-healing cutting mat |
| Power supply | 230V/50Hz (10A) or120V/60Hz (15A) |
| Required air supply | 6-8bar (87-116psi) |
| Net weight | 450 kg (992lbs) |
| Gross weight | 550 kg (1213lbs) |
| Packaging dimensions | N/A |
| Warranty | 3 years |
| FEATURES | |
|---|---|
| Roll holder for glide beam | Included |
| Casters | Included |
| Machine feet | Included |
| Illuminated Worktable | Included |
| Roll holder for bed end | Option |
Download Product Sheet
Download PDF
